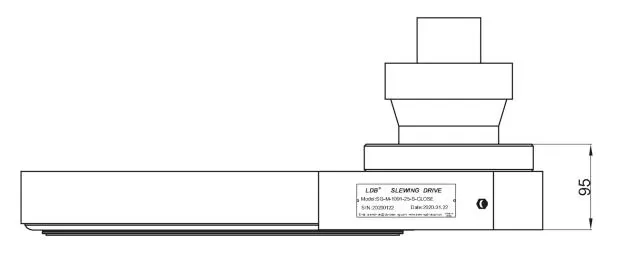

【SG-M Spur Gear Slewing Drive】 SG-M-1091

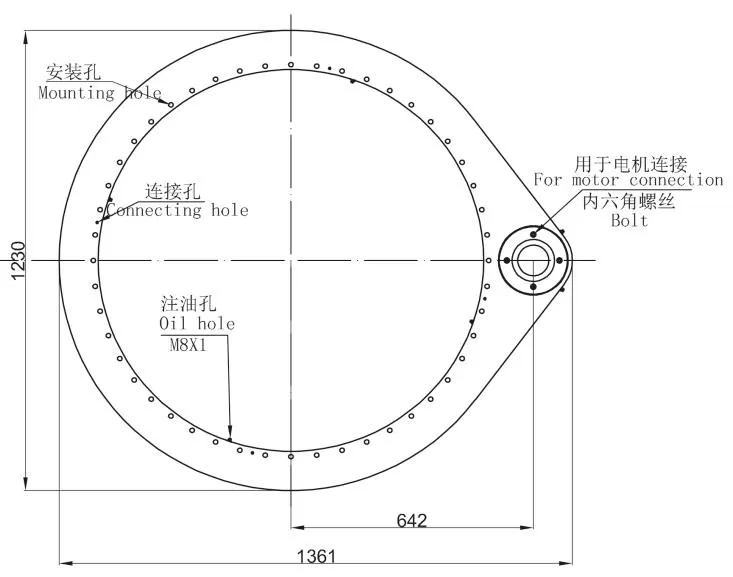

Lubrication of slewing drive; 4 M8X1 grease nipples on the inner ring; 2 M8X1 grease nipples on the housing; Slewing drive supplied pre-lubricated.

Name	Sign	Unit	Value
Module	m	[mm]	6
Teeth number of wheel	z2	[-]	198
Teeth number of pinion	z1	[-]	15
Overall gear ration	i	[-]	13.20
Maxtorque SFS=1.75	Md max	[Nm]	24207
Nom torque SF=1 at n=5rpm	Md nom	[Nm]	18847
Max holding torque	Mh	[Nm]	24207
Radial static load	Co rad	[kN]	638
Axial static load	Co ax	[kN]	1492
Radial dynamic load	C rad	[kN]	213
Axial dynamic load	C ax	[kN]	215
Weight	P	[kg]	200
Pressure differential	△	[bar]	190
Oil flow	Q	[l/min]	62
Output speed	n	[min-1]	5
Max achievable torgue	Md	[Nm]	24207
