6
69 - 227
15 - 17
4.60 - 13.50
8191 - 33405 Nm
6139 - 23383 Nm
Factory price & fast delivery
Recommend best suitable product for you
OEM/ODM service
One year warranty service
| Cover | Model |
m [mm] Module |
z2 [-] Teeth number of wheel |
z1 [-] Teeth number of pinion |
i [-] Overall gear ration |
Md max [Nm] Maxtorque SFS=1.75 |
Md nom [Nm] Nom torque SF=1 at n=5rpm |
Mh [Nm] Max holding torque |
Co rad [kN] Radial static load |
Co ax [kN] Axial static load |
C rad [kN] Radial dynamic load |
C ax [kN] Axial dynamic load |
P [kg] Weight |
△ [bar] Pressure differential |
Q [l/min] Oil flow |
n [min-1] Output speed |
Md [Nm] Max achievable torgue |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SG-M-0311 | 6 | 69 | 15 | 4.60 | 8191 | 6139 | 8191 | 181 | 425 | 133 | 133 | 80 | 124 | 39 | 5 | 8191 |
|
SG-M-0411 | 6 | 84 | 15 | 5.60 | 10147 | 7687 | 10147 | 240 | 561 | 147 | 147 | 95 | 190 | 28 | 5 | 10147 |
|
SG-M-0541 | 6 | 105 | 15 | 7 | 12837 | 9845 | 12837 | 316 | 739 | 164 | 165 | 110 | 190 | 34 | 5 | 12837 |
|
SG-M-0641 | 6 | 123 | 15 | 8.20 | 14916 | 11508 | 14916 | 374 | 876 | 175 | 176 | 125 | 190 | 38 | 5 | 14916 |
|
SG-M-0741 | 6 | 138 | 15 | 9.20 | 16872 | 13057 | 16872 | 433.2 | 1013 | 184 | 185 | 140 | 190 | 43 | 5 | 16872 |
|
SG-M-0841 | 6 | 156 | 15 | 10.40 | 19073 | 14805 | 19073 | 492 | 1150 | 194 | 195 | 155 | 190 | 48 | 5 | 19073 |
|
SG-M-0941 | 6 | 174 | 15 | 11.60 | 21029 | 16323 | 21029 | 550 | 1286 | 201 | 203 | 170 | 190 | 51 | 5 | 21029 |
|
SG-M-1091 | 6 | 198 | 15 | 13.20 | 24207 | 18847 | 24207 | 638 | 1492 | 213 | 215 | 200 | 190 | 62 | 5 | 24207 |
|
SG-M-1670 | 8 | 227 | 17 | 13.50 | 33405 | 23383 | 33405 | 1687 | 4728 | 253 | 709 | -- | -- | -- | 2.5~10 | 33405 |

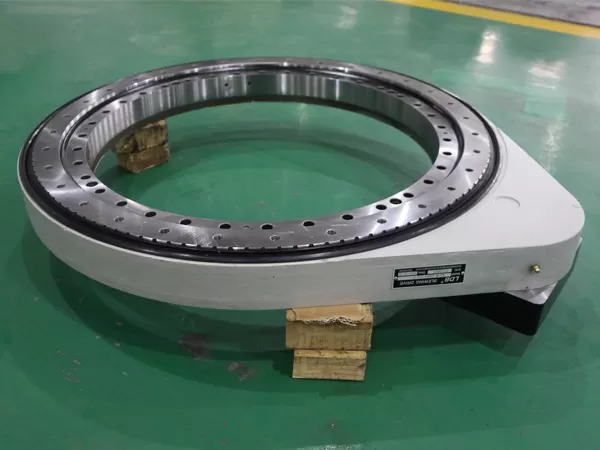

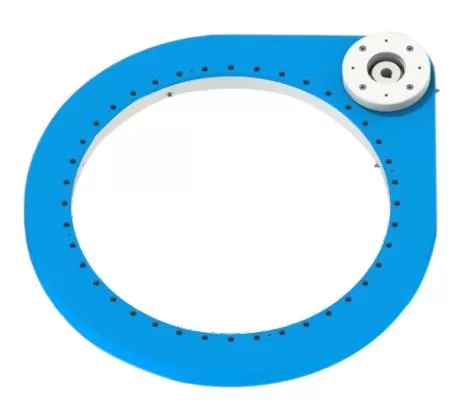

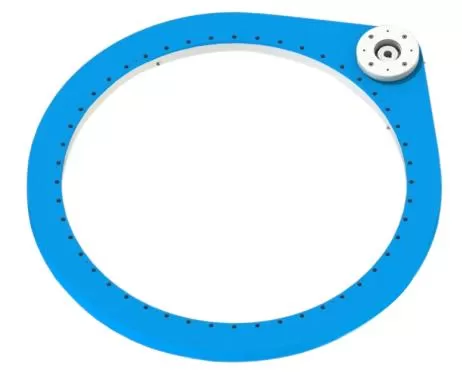

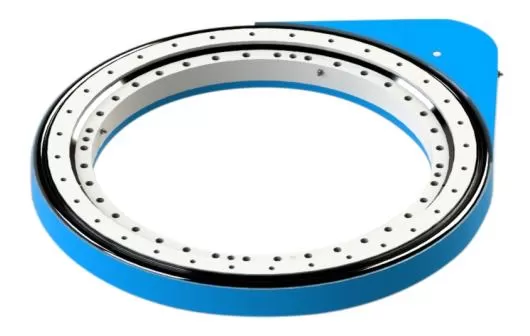

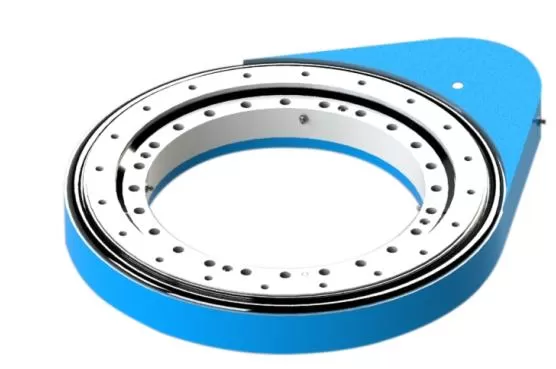

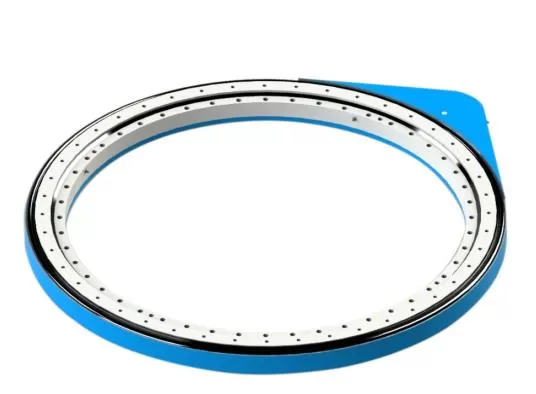

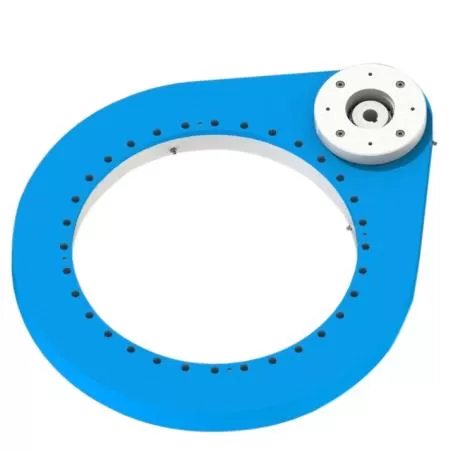

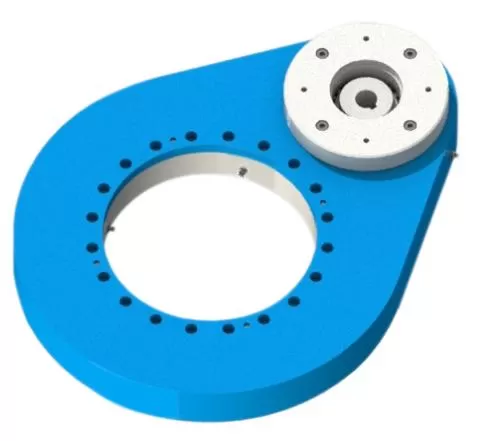

Replace the structure of slewing bearing with internal/external gear plus pinion; the compact design effectively saves installation space and is easy to integrate into existing application units.
High transmission efficiency and fast rotation speed.
Can withstand axial load, radial load and tilting moment.
Full protection design can effectively extend service life, reduce maintenance costs, improve operator safety, and the protection level reaches IP65.
Clean and tidy appearance.
Three series are available according to different working conditions, and customized design can be provided quickly.
SG: Spur gear slewing drive; HG: Helical gear slewing drive
I: Light series; M: Medium series; H: Heavy series
E: External gear; I: Internal gear
C: Close type; O: Open type
S: Single gear slewing drive; D: Double gear slewing drive
The code includes input shaft hole diameter [mm] and raceway center diameter [mm]
