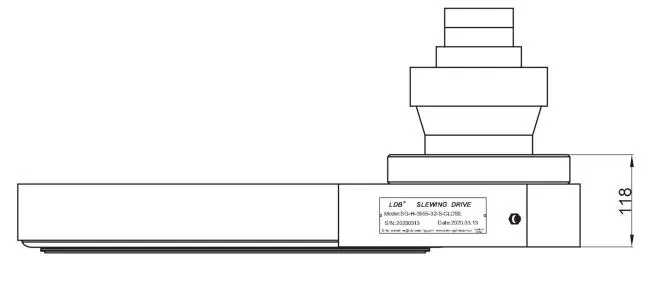

【SG-H Spur Gear Slewing Drive】 SG-H-0555

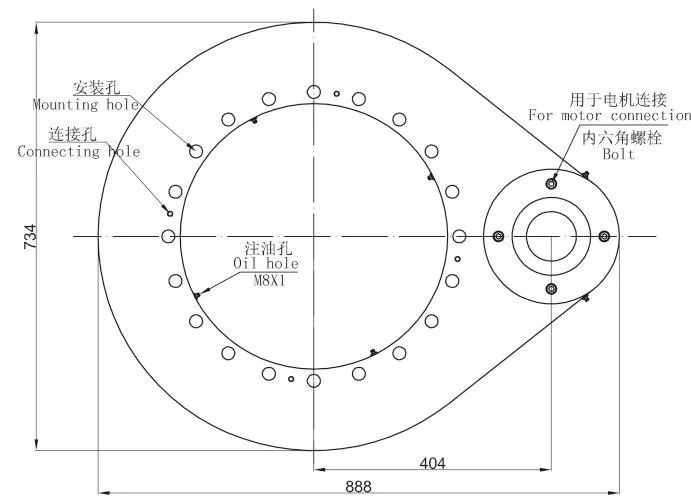

Lubrication of slewing drive; 3 M8X1 grease nipples on the inner ring; 2 M8X1 grease nipples on the housing; Slewing drive supplied pre-lubricated.

Name	Sign	Unit	Value
Module	m	[mm]	8
Teeth number of wheel	z2	[-]	87
Teeth number of pinion	z1	[-]	15
Overall gear ration	i	[-]	5.80
Max torque	Md max	[Nm]	31036
Nom torque SF=1 at n=5rpm	Md nom	[Nm]	20510
Max holding torque	Mh	[Nm]	31036
Radial static load	Co rad	[kN]	619
Axial static load	Co ax	[kN]	1658
Radial dynamic load	C rad	[kN]	253
Axial dynamic load	C ax	[kN]	296
Weight	P	[kg]	215
Pressure differential	△	[bar]	195
Oil flow	Q	[l/min]	45
Output speed	n	[min-1]	3
Max achievable torgue	Md	[Nm]	31036
