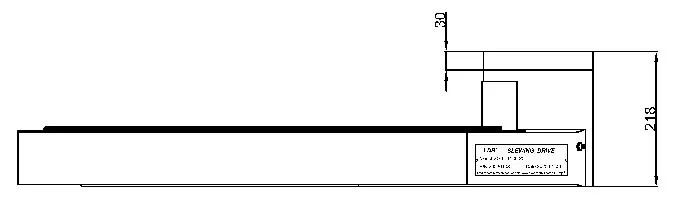

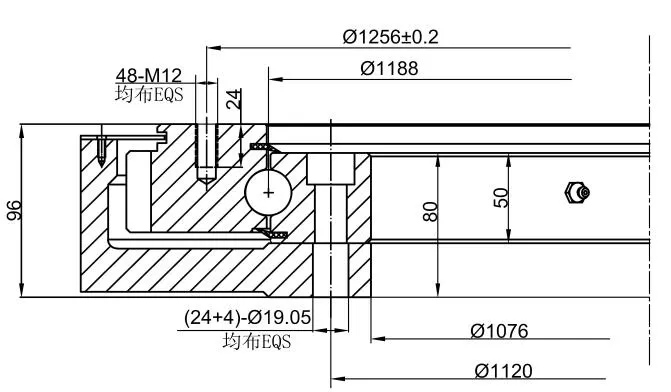

【SG-H Spur Gear Slewing Drive】 SG-H-1188

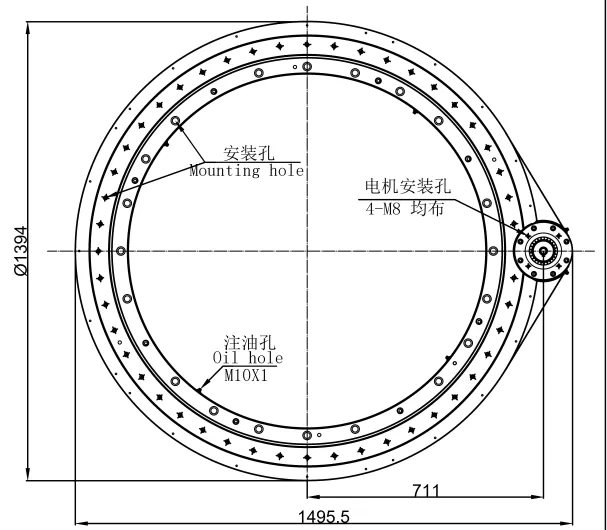

Lubrication of slewing drive; 3 M8X1 grease nipples on the inner ring; 2 M8X1 grease nipples on the housing; Slewing drive supplied pre-lubricated.

Name	Sign	Unit	Value
Module	m	[mm]	8
Teeth number of wheel	z2	[-]	222
Teeth number of pinion	z1	[-]	20
Overall gear ration	i	[-]	14.8
Max torque	Md max	[Nm]	27838
Nom torque SF=1 at n=3rpm	Md nom	[Nm]	21674
Max holding torque	Mh	[Nm]	27838
Radial static load	Co rad	[kN]	1095
Axial static load	Co ax	[kN]	3285
Radial dynamic load	C rad	[kN]	547.5
Axial dynamic load	C ax	[kN]	1314
Weight	P	[kg]	--
Pressure differential	△	[bar]	--
Oil flow	Q	[l/min]	--
Output speed	n	[min-1]	0.5~2
Max achievable torgue	Md	[Nm]	27838
